Weasler Pto14106436St Standard Ab4 Pto Drive Shaft

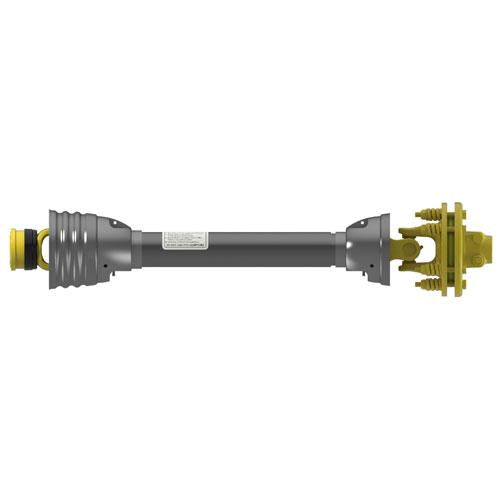

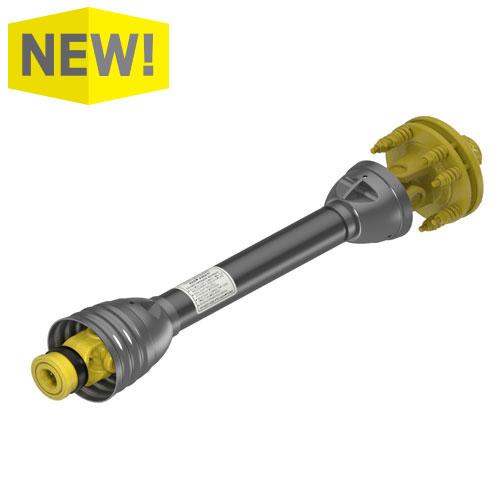

Weasler PTO14106436ST STANDARD AB4 PTO Drive Shaft (FOR A PULL-TYPE CUTTER/TILLER)

Mfr Part #: 14106436ST
Commodity Class: .
Stocking Type2: Purchased inc. Raw Material
Product: Drive Shaft
Series: AB4
Type: Profile PTO Drive Shaft
Driveline Series: Italian
Outer Diameter: 7.1"
Overall Compressed Length: 35.93"
Bore 1: 1.37"
Bore 1 Description: 1 3/8-6 Spline
Connection 1: Spring-Lok
Bore 2: 1.25"
Bore 2 Description: 1 3/8-6 Spline
Connection 2: Clamp
Extended Length: 48.81"
HP @ 540 RPM: 36
HP @ 1000 RPM: 56
Supplier: Weasler Engineering Inc.

The Weasler Standard AB4 PTO Drive Shaft seamlessly transfers power between a tractor and its attached machinery. Created for the value-conscious equipment owner only needing the essentials for light-duty or intermittent use, this drive shaft works perfectly in tandem with low horsepower implements.

FEATURES

• 8000 inch-pound friction clutch yoke
• Provides up to 80 horsepower at 540RPM
• Design adjustability (cut-to-length) capabilities
• Durable profile telescoping transmits the right amount of torque
• Interchangeability to fit on most equipment models
• Spring-loaded collar to easily attach and release the yoke
• Interchangeable yokes - yokes can be switched with most standard yokes available on the market
• Protective guard system - provides full coverage at all angles and durable against ultraviolet light and ozone (does not include Easy Lock system)
• Universal joint has easy to locate and access grease fitting
• Meets ASABE and CEN safety requirements

ADDITIONAL NOTES

The PTO14106436ST model is specifically designed to be a ready-to-install solution for push-type cutters or tillers, but there are several other models available in the Weasler standard drive shaft series if needed for other applications
